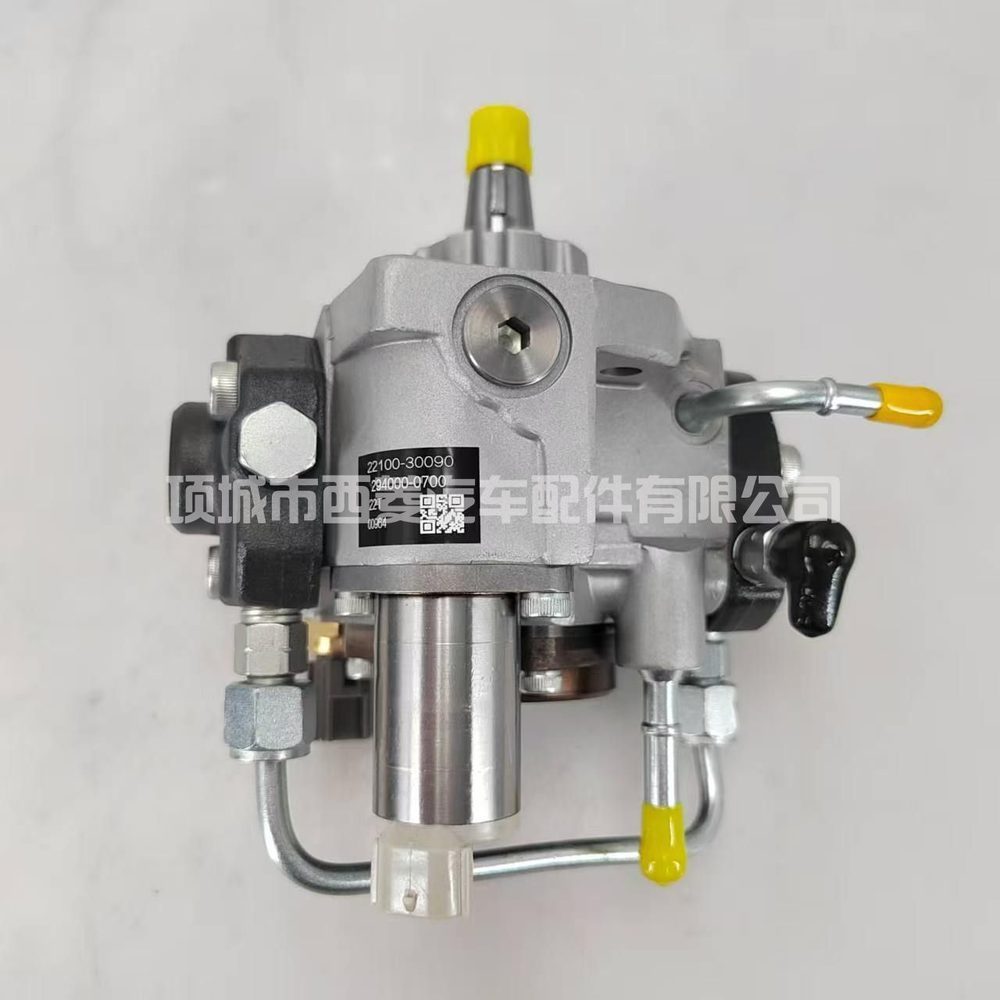

Remanufactured high pressure pump, cross-ref 22100-30090. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.
22100-30090 is supplied as a remanufactured replacement high pressure pump. Cross-reference numbers: 22100-30090. Application recorded for this part: Fits Toyota — 1KD 2KD vigo revo. This pump has two jobs that are easy to conflate: raising fuel to injection pressure, and metering the correct quantity at the correct moment. Wear affects both. The result is usually a combination of harder starting, drifting timing and visible smoke rather than one clean fault. Symptoms associated with pump wear include hard starting when hot, loss of power, unstable idle, excess smoke, timing that will not hold, and in some cases diesel getting into the lubricating oil via a leaking drive shaft seal. Confirm you actually need a pump. Verify supply pressure at the inlet, check for air ingress and restrictions, and have delivery and timing tested on the bench — many 'worn pumps' turn out to be supply faults. Fitment notes: this unit must be timed to the engine, not simply bolted on. Never force the shaft to align — turn the engine over to meet it. Prime the system before cranking, fit a new drive seal where specified, and verify supply pressure from the lift pump before start-up. Running a dry pump, even briefly, causes damage that no warranty will cover. Rebuild process: full teardown and measurement first, then replacement of all wear components, machining back to specification where required, followed by calibration and bench testing. The difference between this and a cleaned used part is the measurement and test record — we hold every unit to the specification for the part number, not just to 'it runs'. Test sheets available on request, and every unit ships with a 12-month warranty.
| Part number | 22100-30090 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Application | Fits Toyota — 1KD 2KD vigo revo |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Three very different things are sold under similar descriptions. Here is what separates them, and what to ask before you buy.
Read the guide →The pump sets pressure, quantity and timing. Here is how wear shows up, and the checks that separate pump faults from supply faults.
Read the guide →Water, dirt and misfuelling damage common rail components differently. What to check, and why cleaning the system matters as much as replacing parts.
Read the guide →
