About this part

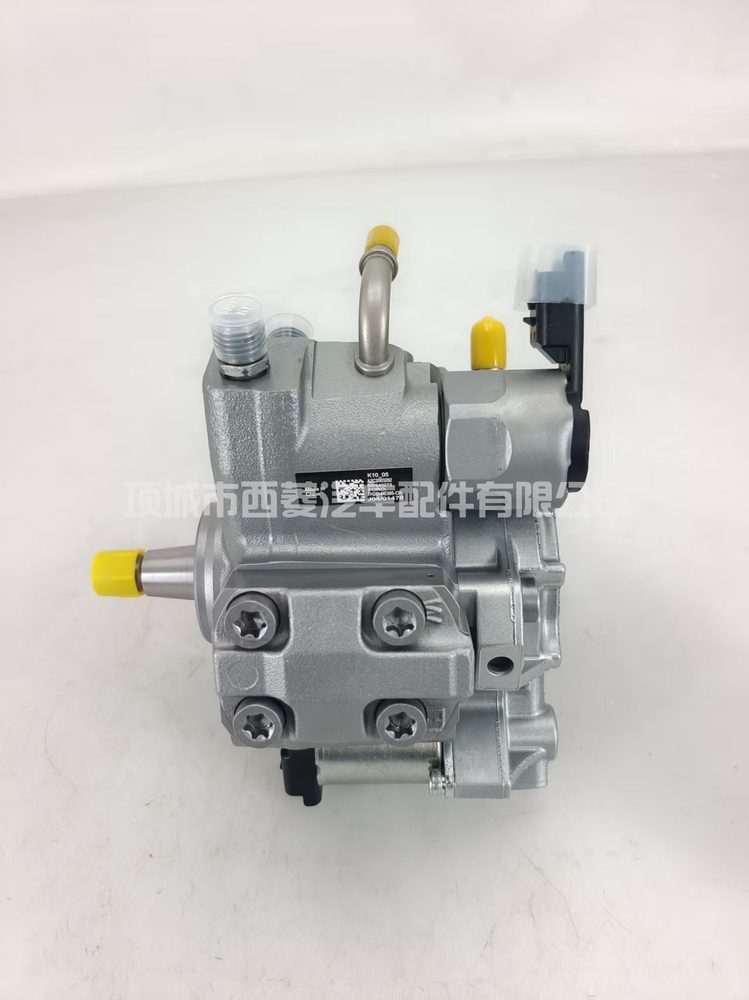

LR005549 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: LR005549, LR008831, LR009666, 5WS40273, 7H2Q9B395CH. Application recorded for this part: 7H2Q9B395CH, LR005549, LR008831, LR009666.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle.
Diagnose the supply side before blaming the pump. Restricted filters, a tired lift pump or air being drawn into the suction line will produce symptoms almost identical to internal pump wear, and are far cheaper to resolve.
Set timing to the engine’s marks and never lever the pump into place — bar the engine over instead. Prime thoroughly, use a new mounting seal, verify lift pump supply pressure, and bleed before starting. A dry start is the fastest way to ruin a sound pump.
Our rebuild standard: strip to components, clean, measure against wear limits, replace what is worn, machine back to specification where required, then calibrate and bench-test every unit. Delivery, return flow, opening pressure and leakage are recorded, and units outside specification are not dispatched. Test sheets available on request, and every unit carries a 12-month warranty.
Specifications
| Part number | LR005549 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | LR005549, LR008831, LR009666, 5WS40273, 7H2Q9B395CH |
| Application | 7H2Q9B395CH, LR005549, LR008831, LR009666 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
All manufacturer names, symbols and part numbers are used for identification and cross-reference purposes only. We are not an authorised distributor and are not affiliated with the original equipment manufacturer. Products offered are remanufactured or new aftermarket replacement parts unless stated otherwise.
