About this part

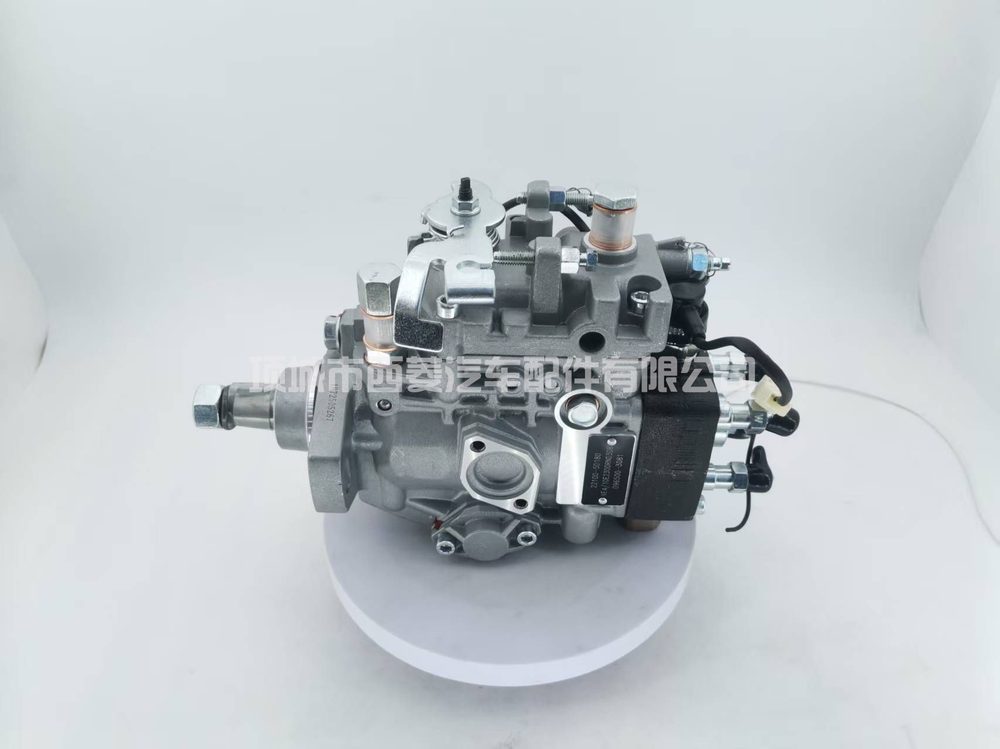

22100-5D180 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 22100-5D180, 096500-3081. Application recorded for this part: Fits Toyota — 5L.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
Typical indicators are progressively harder starting, particularly when hot, reduced power, smoke under load, erratic idle, and fuel dilution in the sump — the last one should always be investigated immediately.
Before condemning the pump, rule out the cheap causes: supply restrictions, a weak lift pump, air ingress on the suction side and a blocked filter. Check supply pressure and condition at the pump inlet first, then look at delivery and timing.
Fitment notes: this unit must be timed to the engine, not simply bolted on. Never force the shaft to align — turn the engine over to meet it. Prime the system before cranking, fit a new drive seal where specified, and verify supply pressure from the lift pump before start-up. Running a dry pump, even briefly, causes damage that no warranty will cover.
Our rebuild standard: strip to components, clean, measure against wear limits, replace what is worn, machine back to specification where required, then calibrate and bench-test every unit. Delivery, return flow, opening pressure and leakage are recorded, and units outside specification are not dispatched. Test sheets available on request, and every unit carries a 12-month warranty.
Specifications
| Part number | 22100-5D180 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 22100-5D180, 096500-3081 |
| Application | Fits Toyota — 5L |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
