About this part

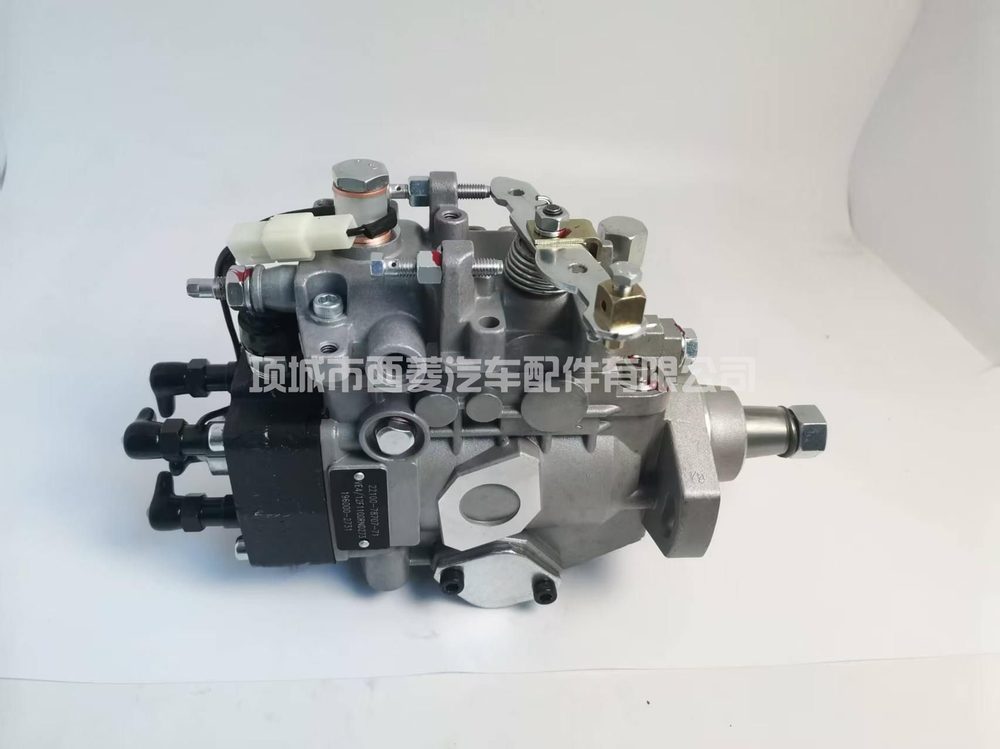

196000-2731 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 196000-2731, 22100-78707. Application recorded for this part: Fits Toyota — Hiace Hilux 3L 2.8 VE.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
The pattern is normally cumulative: slightly harder starting, then noticeable power loss, then smoke and unstable idle. Where the drive seal has failed, diesel in the lubricating oil is the warning that should stop you running the engine.
Check supply pressure at the pump inlet and look for air in the clear line before assuming internal wear. Plenty of pumps get replaced for a blocked filter or a suction leak that costs a fraction to put right.
Fitment notes: this unit must be timed to the engine, not simply bolted on. Never force the shaft to align — turn the engine over to meet it. Prime the system before cranking, fit a new drive seal where specified, and verify supply pressure from the lift pump before start-up. Running a dry pump, even briefly, causes damage that no warranty will cover.
Rebuilt rather than refurbished: full teardown and measurement, worn components replaced instead of cleaned and reused, sealing surfaces restored to specification, then bench calibration and testing. The record is what separates this from a used part — we can provide the test sheet for your order. Covered by a 12-month warranty.
Specifications
| Part number | 196000-2731 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 196000-2731, 22100-78707 |
| Application | Fits Toyota — Hiace Hilux 3L 2.8 VE |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
