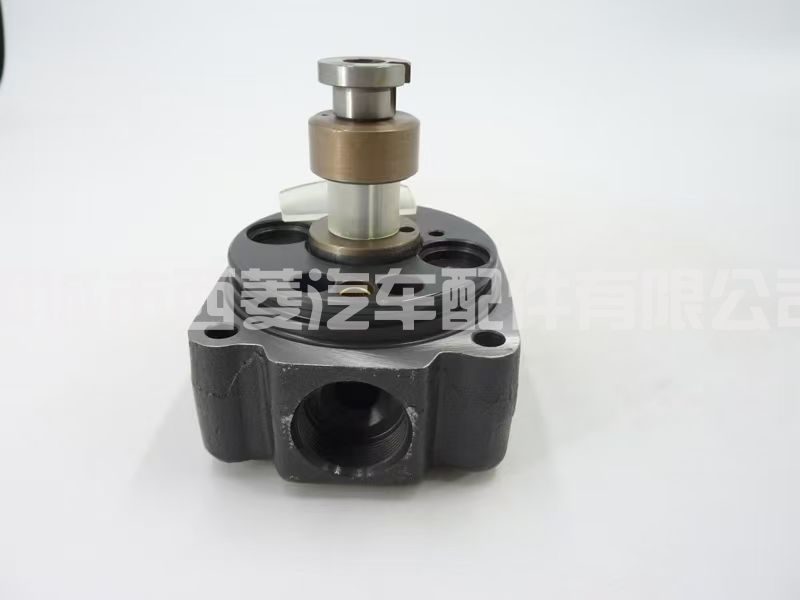

Remanufactured fuel injection part, cross-ref 146402-3820, 104641-6990. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.
146402-3820 is supplied as a remanufactured replacement fuel injection part. Cross-reference numbers: 146402-3820, 104641-6990. Application recorded for this part: 4JA1. The injector sits at the end of the rail and does the final metering work: it receives fuel already at high pressure and decides both how much enters the cylinder and how well atomised it is. That combination governs power, smoke and fuel consumption more directly than almost any other part on the engine. Common indicators are rough or unstable idle, smoke that was not there before, higher fuel consumption on the same duty cycle, diesel knock under load, and in some cases fuel dilution of the engine oil from an injector that is leaking internally. Because those symptoms also point to compression, turbocharger or air-side problems, it is worth confirming before ordering. A return-flow (back-leakage) test across all injectors and a cylinder cut-out test will usually identify both whether the fault is injector-related and which cylinder is responsible. Before fitting: clean the seat thoroughly, use new copper washers and seals, and torque the clamp to the engine manufacturer’s figure. Replace as a set where possible, and check whether the ECU needs the new units’ classification codes written in afterwards. Rebuild process: full teardown and measurement first, then replacement of all wear components, machining back to specification where required, followed by calibration and bench testing. The difference between this and a cleaned used part is the measurement and test record — we hold every unit to the specification for the part number, not just to 'it runs'. Test sheets available on request, and every unit ships with a 12-month warranty.
| Part number | 146402-3820 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 146402-3820, 104641-6990 |
| Application | 4JA1 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
