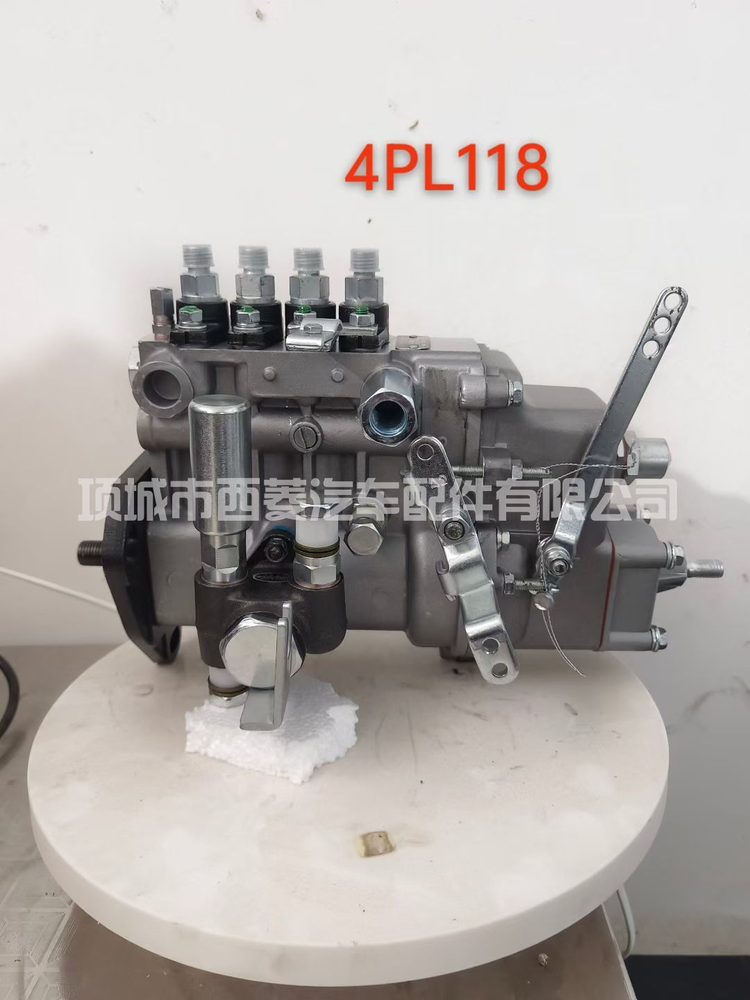

Remanufactured fuel injection pump, cross-ref BHF4A090012, 4PL118, 4100QB-2. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.
BHF4A090012 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: BHF4A090012, 4PL118, 4100QB-2. Supply pressure, timing and delivery quantity are all set here. Failures tend to progress gradually — a little more smoke, slightly harder starting when hot, slowly rising consumption — which is why they are often attributed to the injectors before the pump is checked. Typical indicators are progressively harder starting, particularly when hot, reduced power, smoke under load, erratic idle, and fuel dilution in the sump — the last one should always be investigated immediately. Diagnose the supply side before blaming the pump. Restricted filters, a tired lift pump or air being drawn into the suction line will produce symptoms almost identical to internal pump wear, and are far cheaper to resolve. Key points: align to the timing marks rather than forcing the drive, prime before cranking, renew seals, confirm adequate supply pressure from the lift pump, and bleed the system fully. Skipping any of these is where most comebacks originate. Rebuilt rather than refurbished: full teardown and measurement, worn components replaced instead of cleaned and reused, sealing surfaces restored to specification, then bench calibration and testing. The record is what separates this from a used part — we can provide the test sheet for your order. Covered by a 12-month warranty.
| Part number | BHF4A090012 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | BHF4A090012, 4PL118, 4100QB-2 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
