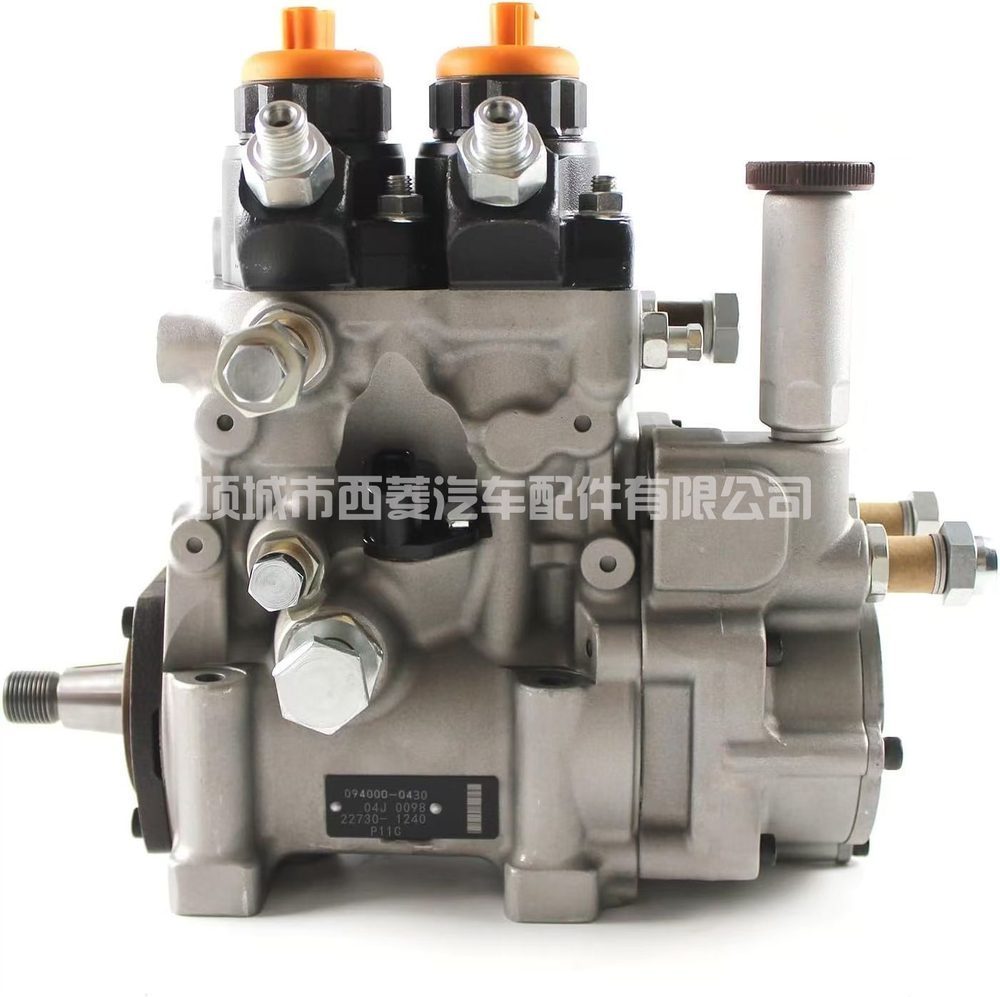

Remanufactured fuel injection pump, cross-ref 94000-0430, 22100-E0390. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.
94000-0430 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 94000-0430, 22100-E0390. Application recorded for this part: HP0. This pump has two jobs that are easy to conflate: raising fuel to injection pressure, and metering the correct quantity at the correct moment. Wear affects both. The result is usually a combination of harder starting, drifting timing and visible smoke rather than one clean fault. Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle. Before condemning the pump, rule out the cheap causes: supply restrictions, a weak lift pump, air ingress on the suction side and a blocked filter. Check supply pressure and condition at the pump inlet first, then look at delivery and timing. Fitting notes: timing is everything here. Set the pump against the engine's timing marks rather than forcing anything, prime thoroughly before cranking, and check that the lift pump is delivering adequate supply pressure. Also replace the mounting seal and confirm there is no air left in the system before the first start. What we do differently: every core is stripped to components, inspected against wear limits and measured before anything is reused. Worn parts are replaced, not cleaned and refitted. After reassembly the unit is bench-tested — delivery, return flow, opening pressure and leakage — and only units inside specification are dispatched. We can send the test sheet for your order before it leaves. Every remanufactured unit carries a 12-month warranty.
| Part number | 94000-0430 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 94000-0430, 22100-E0390 |
| Application | HP0 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
