About this part

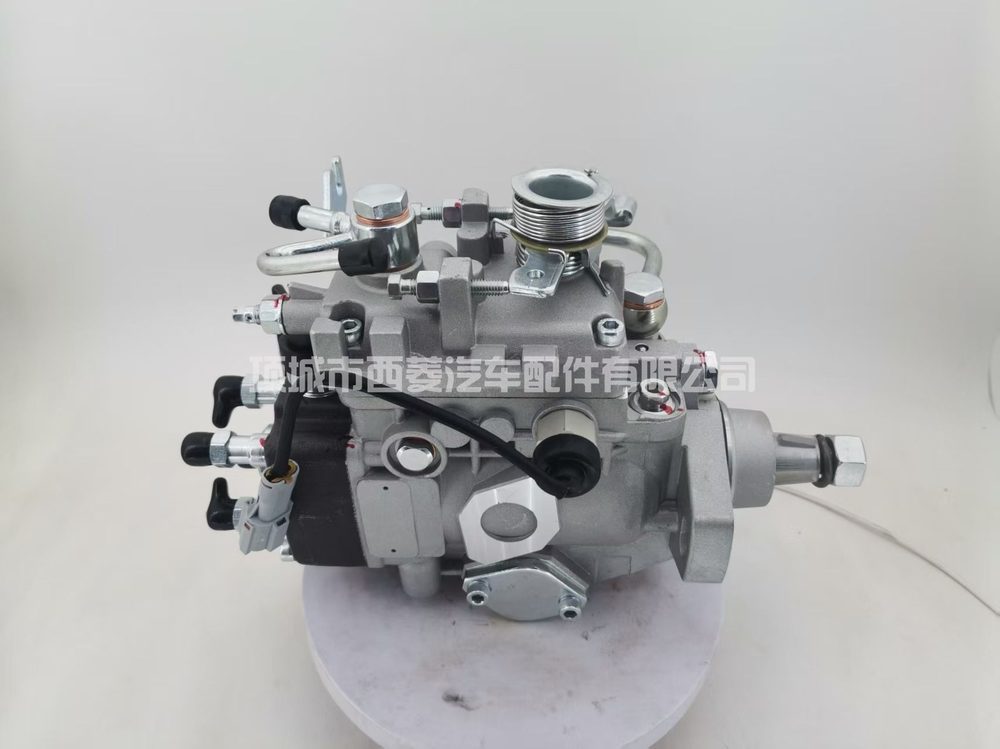

33102-42510 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 33102-42510, 3310242510, 1047807010. Application recorded for this part: D4BF D4BH.
This unit sets both quantity and timing for every cylinder. Modern engines depend on that timing being accurate to well under a degree, so internal wear that would once have been tolerated now shows up as smoke, noise and failed emissions checks.
Expect extended cranking especially when hot, hesitant throttle response, smoke that persists rather than clears, timing that drifts or will not hold, and in some cases fuel in the sump or a pump body running unusually hot.
Confirm you actually need a pump. Verify supply pressure at the inlet, check for air ingress and restrictions, and have delivery and timing tested on the bench — many 'worn pumps' turn out to be supply faults.
Fitment notes: this unit must be timed to the engine, not simply bolted on. Never force the shaft to align — turn the engine over to meet it. Prime the system before cranking, fit a new drive seal where specified, and verify supply pressure from the lift pump before start-up. Running a dry pump, even briefly, causes damage that no warranty will cover.
Rebuild process: full teardown and measurement first, then replacement of all wear components, machining back to specification where required, followed by calibration and bench testing. The difference between this and a cleaned used part is the measurement and test record — we hold every unit to the specification for the part number, not just to 'it runs'. Test sheets available on request, and every unit ships with a 12-month warranty.
Specifications
| Part number | 33102-42510 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 33102-42510, 3310242510, 1047807010 |
| Application | D4BF D4BH |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
