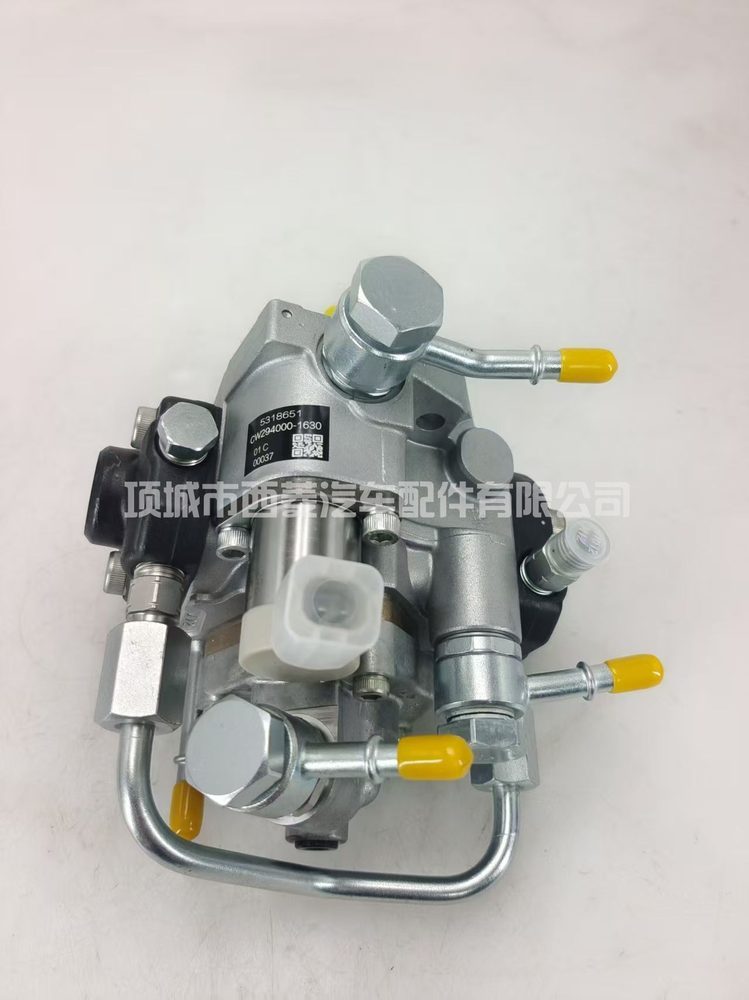

Remanufactured fuel injection pump, cross-ref 294000-1630, 294000-1631, 5318651. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.
294000-1630 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 294000-1630, 294000-1631, 5318651, 5294402. This unit sets both quantity and timing for every cylinder. Modern engines depend on that timing being accurate to well under a degree, so internal wear that would once have been tolerated now shows up as smoke, noise and failed emissions checks. Symptoms associated with pump wear include hard starting when hot, loss of power, unstable idle, excess smoke, timing that will not hold, and in some cases diesel getting into the lubricating oil via a leaking drive shaft seal. Diagnose the supply side before blaming the pump. Restricted filters, a tired lift pump or air being drawn into the suction line will produce symptoms almost identical to internal pump wear, and are far cheaper to resolve. Installation notes: never rotate the pump by force to align it — bar the engine over instead. Prime before cranking, renew the drive seal, confirm supply pressure, and bleed the system properly. Dry running for even a few seconds is the most common cause of premature failure on an otherwise sound pump. What we do differently: every core is stripped to components, inspected against wear limits and measured before anything is reused. Worn parts are replaced, not cleaned and refitted. After reassembly the unit is bench-tested — delivery, return flow, opening pressure and leakage — and only units inside specification are dispatched. We can send the test sheet for your order before it leaves. Every remanufactured unit carries a 12-month warranty.
| Part number | 294000-1630 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 294000-1630, 294000-1631, 5318651, 5294402 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
