About this part

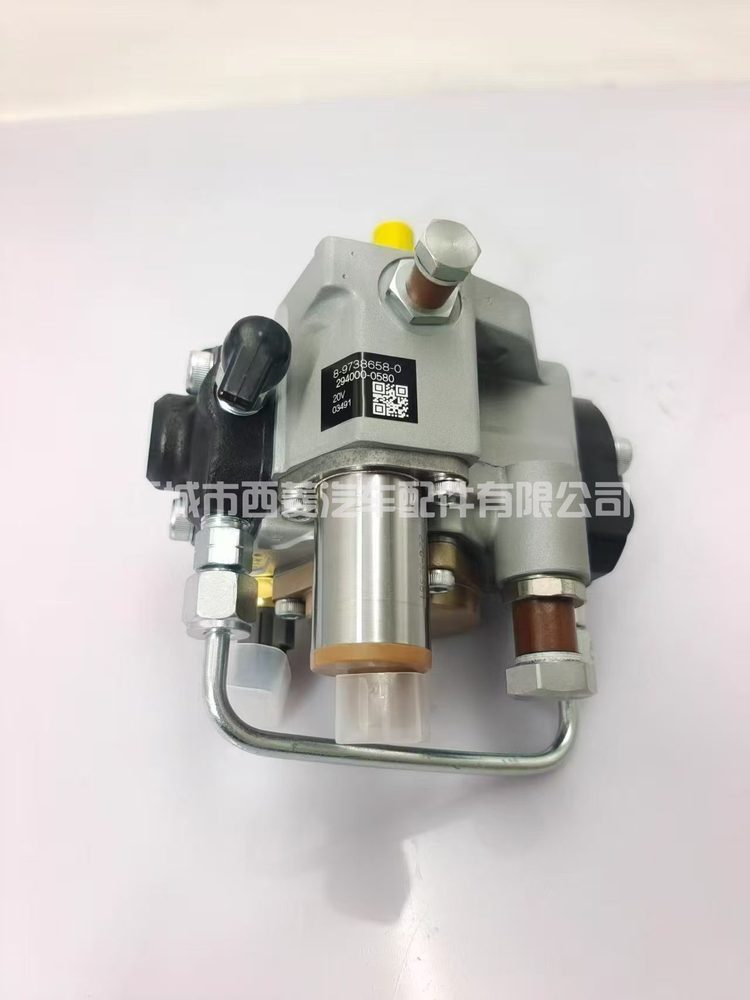

294000-0580 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 294000-0580, 294000-0581, 97386558. Application recorded for this part: Fits Isuzu — HP3.
Supply pressure, timing and delivery quantity are all set here. Failures tend to progress gradually — a little more smoke, slightly harder starting when hot, slowly rising consumption — which is why they are often attributed to the injectors before the pump is checked.
Expect extended cranking especially when hot, hesitant throttle response, smoke that persists rather than clears, timing that drifts or will not hold, and in some cases fuel in the sump or a pump body running unusually hot.
Check supply pressure at the pump inlet and look for air in the clear line before assuming internal wear. Plenty of pumps get replaced for a blocked filter or a suction leak that costs a fraction to put right.
Set timing to the engine’s marks and never lever the pump into place — bar the engine over instead. Prime thoroughly, use a new mounting seal, verify lift pump supply pressure, and bleed before starting. A dry start is the fastest way to ruin a sound pump.
Our rebuild standard: strip to components, clean, measure against wear limits, replace what is worn, machine back to specification where required, then calibrate and bench-test every unit. Delivery, return flow, opening pressure and leakage are recorded, and units outside specification are not dispatched. Test sheets available on request, and every unit carries a 12-month warranty.
Specifications
| Part number | 294000-0580 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 294000-0580, 294000-0581, 97386558 |
| Application | Fits Isuzu — HP3 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
All manufacturer names, symbols and part numbers are used for identification and cross-reference purposes only. We are not an authorised distributor and are not affiliated with the original equipment manufacturer. Products offered are remanufactured or new aftermarket replacement parts unless stated otherwise.
