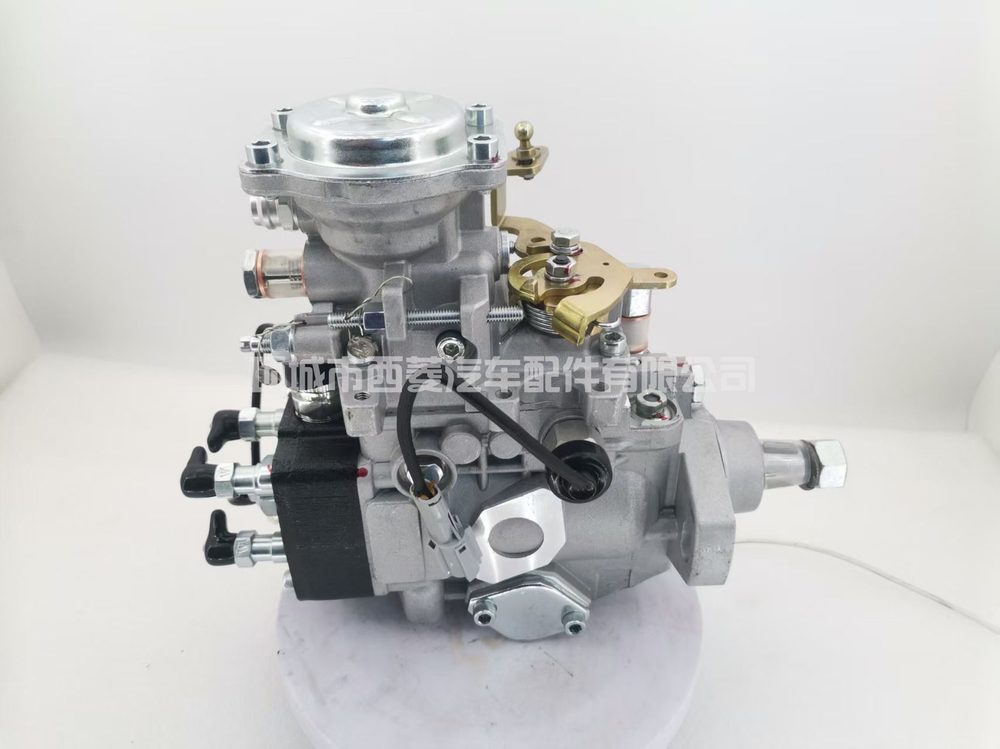

Remanufactured fuel injection pump, cross-ref 22100-5B770. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.
22100-5B770 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 22100-5B770. Application recorded for this part: 22100-5B770 VP37 VE. Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself. Typical indicators are progressively harder starting, particularly when hot, reduced power, smoke under load, erratic idle, and fuel dilution in the sump — the last one should always be investigated immediately. Before condemning the pump, rule out the cheap causes: supply restrictions, a weak lift pump, air ingress on the suction side and a blocked filter. Check supply pressure and condition at the pump inlet first, then look at delivery and timing. Key points: align to the timing marks rather than forcing the drive, prime before cranking, renew seals, confirm adequate supply pressure from the lift pump, and bleed the system fully. Skipping any of these is where most comebacks originate. Rebuilt rather than refurbished: full teardown and measurement, worn components replaced instead of cleaned and reused, sealing surfaces restored to specification, then bench calibration and testing. The record is what separates this from a used part — we can provide the test sheet for your order. Covered by a 12-month warranty.
| Part number | 22100-5B770 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Application | 22100-5B770 VP37 VE |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
