About this part

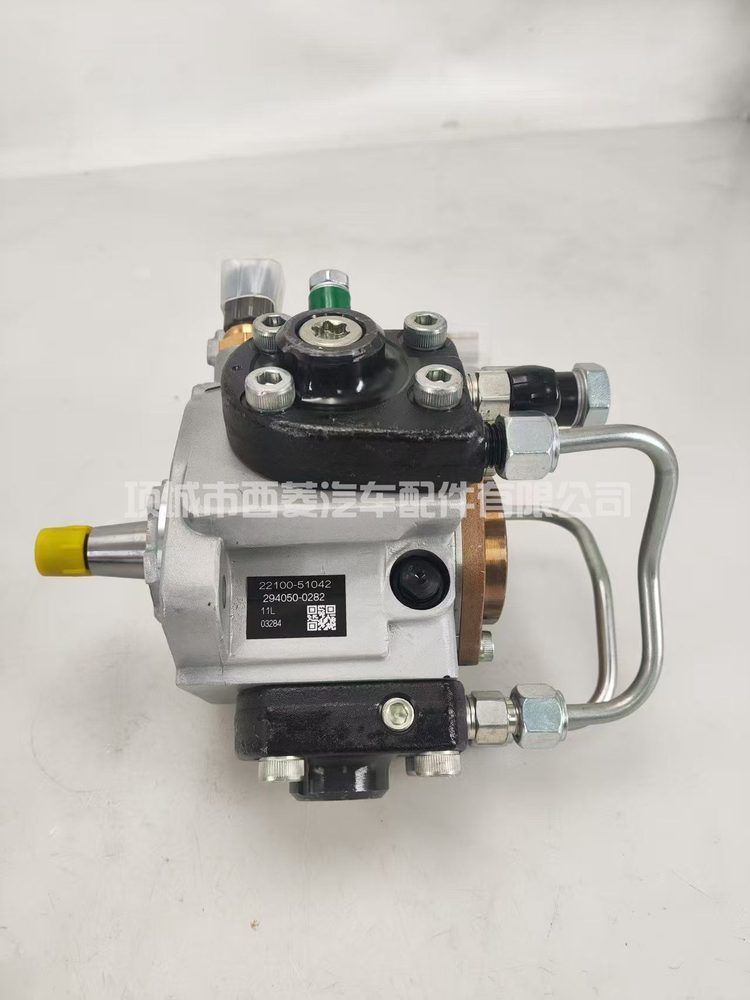

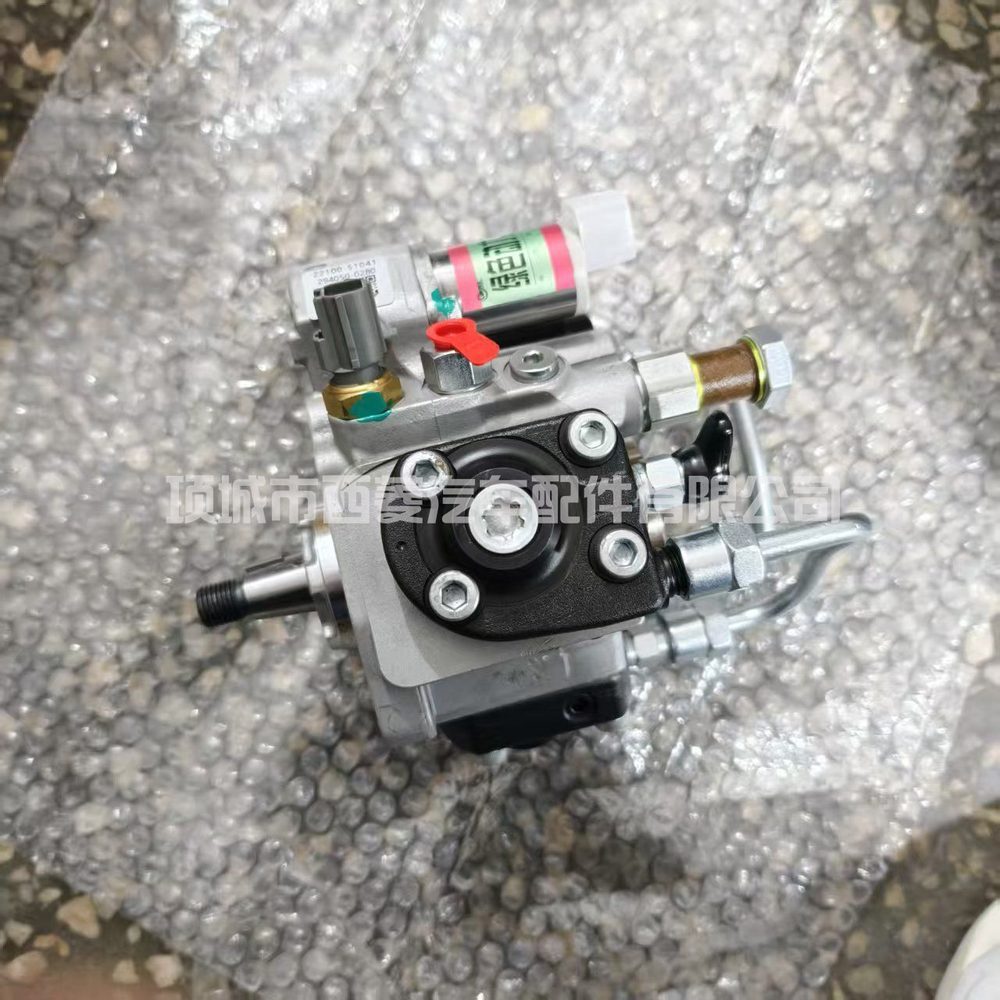

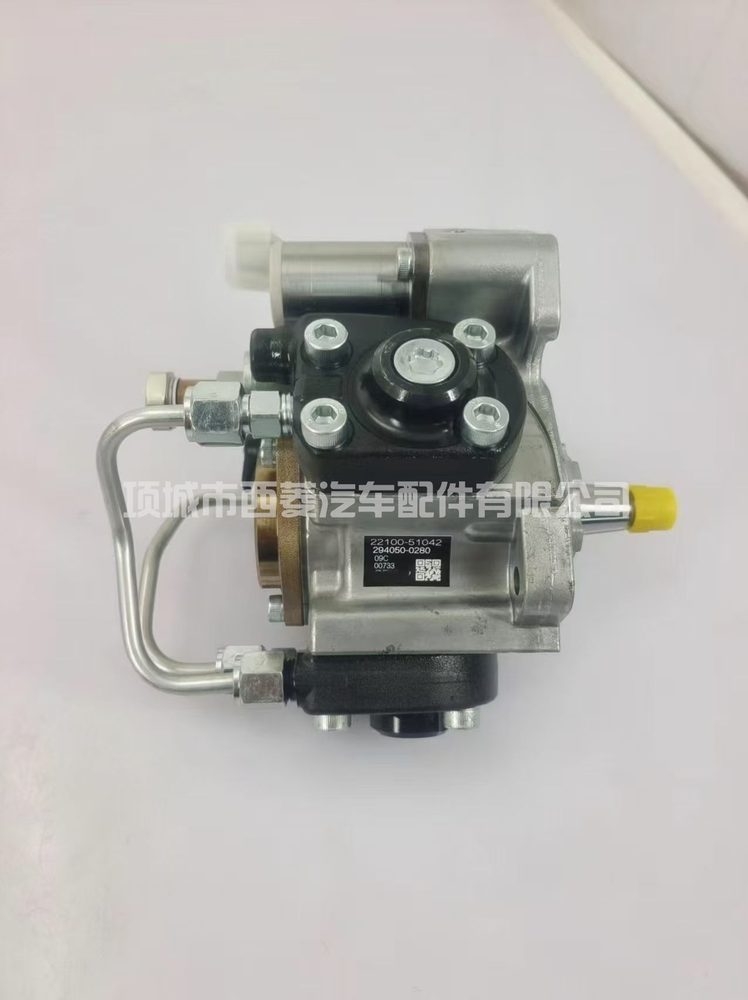

22100-51041 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 22100-51041, 22100-51042, 294050-0280, 294050-0281.
Every injection event depends on this pump producing pressure at exactly the right moment. Because it also carries its own lubrication, poor supply pressure and fuel dilution do disproportionate damage — which is why the supply side should always be checked alongside the pump itself.
Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle.
Confirm you actually need a pump. Verify supply pressure at the inlet, check for air ingress and restrictions, and have delivery and timing tested on the bench — many 'worn pumps' turn out to be supply faults.
Key points: align to the timing marks rather than forcing the drive, prime before cranking, renew seals, confirm adequate supply pressure from the lift pump, and bleed the system fully. Skipping any of these is where most comebacks originate.
How we build it: the unit is fully disassembled, cleaned and measured, not simply resealed. Wear items — seals, springs, and where clearance is out of specification the plunger and barrel or nozzle assemblies — are replaced rather than reused. Sealing faces and bores are re-machined back to original clearances, then the unit is calibrated and run on a bench with delivery, return flow, opening pressure and leakage recorded. Anything outside specification does not ship. Test sheets for your specific units are available on request. Covered by a 12-month warranty.
Specifications
| Part number | 22100-51041 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 22100-51041, 22100-51042, 294050-0280, 294050-0281 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
All manufacturer names, symbols and part numbers are used for identification and cross-reference purposes only. We are not an authorised distributor and are not affiliated with the original equipment manufacturer. Products offered are remanufactured or new aftermarket replacement parts unless stated otherwise.
