About this part

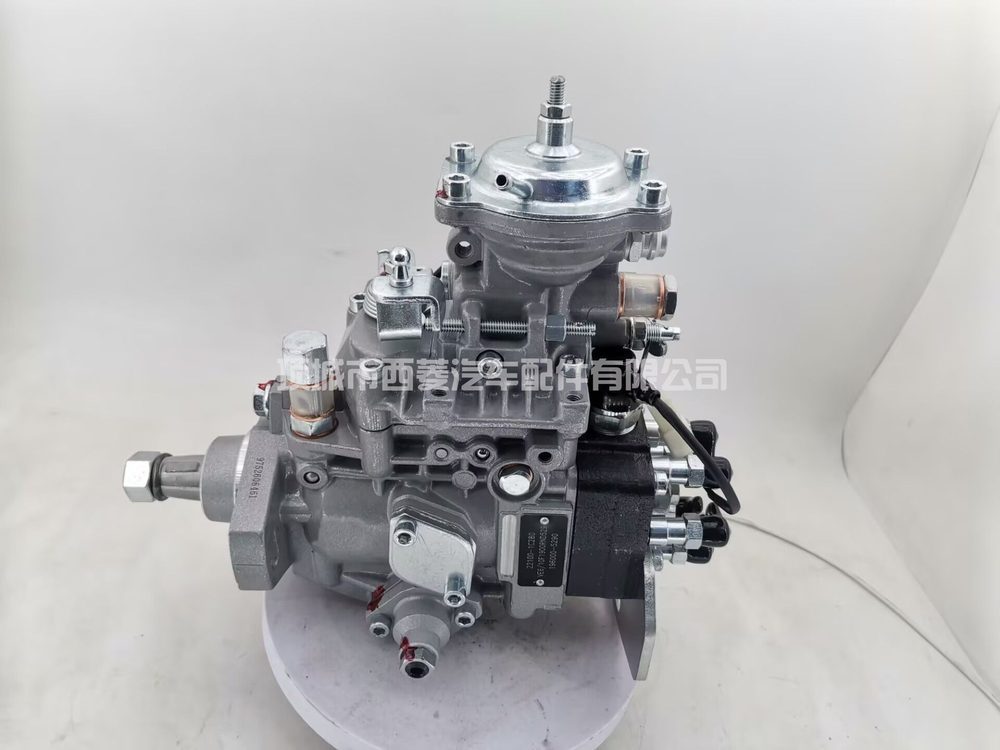

22100-1C280 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 22100-1C280, 196000-5290, 10F1900RND529. Application recorded for this part: VE6.
Supply pressure, timing and delivery quantity are all set here. Failures tend to progress gradually — a little more smoke, slightly harder starting when hot, slowly rising consumption — which is why they are often attributed to the injectors before the pump is checked.
Symptoms associated with pump wear include hard starting when hot, loss of power, unstable idle, excess smoke, timing that will not hold, and in some cases diesel getting into the lubricating oil via a leaking drive shaft seal.
Check supply pressure at the pump inlet and look for air in the clear line before assuming internal wear. Plenty of pumps get replaced for a blocked filter or a suction leak that costs a fraction to put right.
Set timing to the engine’s marks and never lever the pump into place — bar the engine over instead. Prime thoroughly, use a new mounting seal, verify lift pump supply pressure, and bleed before starting. A dry start is the fastest way to ruin a sound pump.
What we do differently: every core is stripped to components, inspected against wear limits and measured before anything is reused. Worn parts are replaced, not cleaned and refitted. After reassembly the unit is bench-tested — delivery, return flow, opening pressure and leakage — and only units inside specification are dispatched. We can send the test sheet for your order before it leaves. Every remanufactured unit carries a 12-month warranty.
Specifications
| Part number | 22100-1C280 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 22100-1C280, 196000-5290, 10F1900RND529 |
| Application | VE6 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
All manufacturer names, symbols and part numbers are used for identification and cross-reference purposes only. We are not an authorised distributor and are not affiliated with the original equipment manufacturer. Products offered are remanufactured or new aftermarket replacement parts unless stated otherwise.
