Remanufactured fuel injection pump, cross-ref 096000-4660, 22100-58600. Bench-tested before shipment.
Quote within 24 hours. Send a photo of your nameplate and we will confirm the exact match.

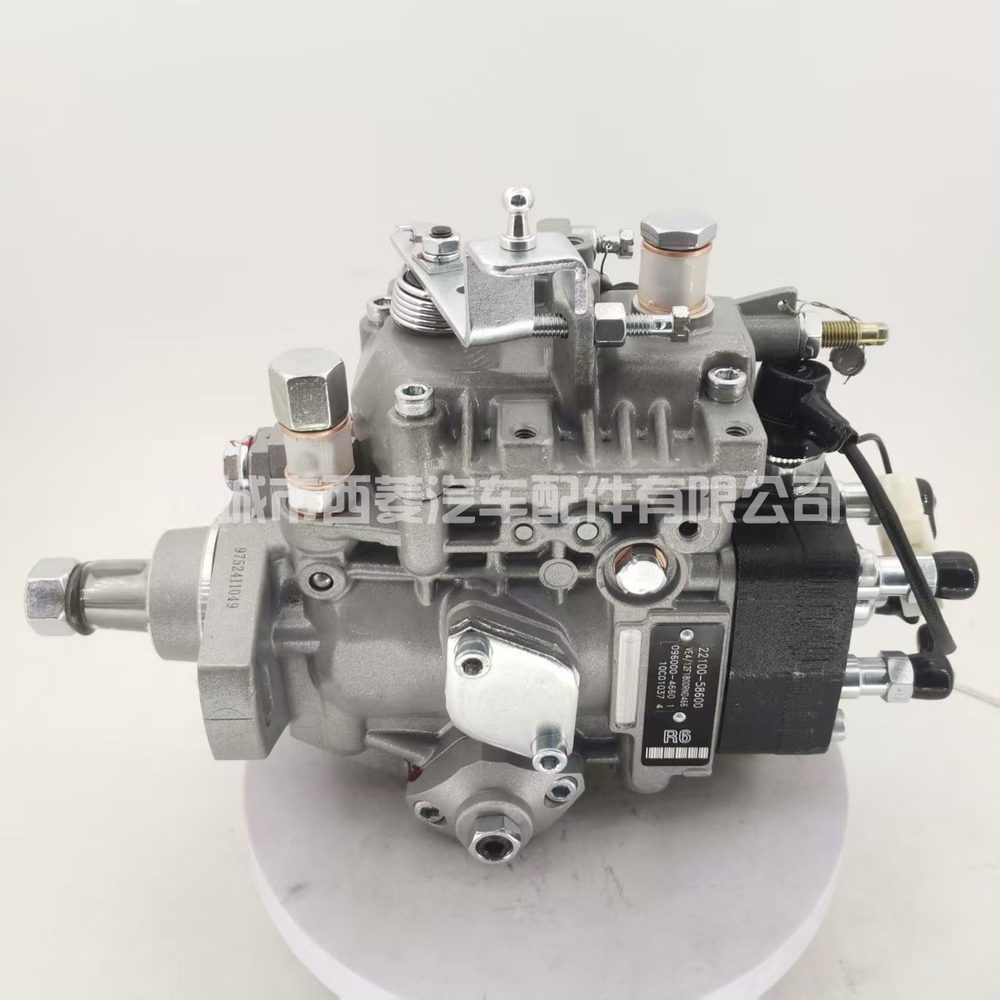

096000-4660 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 096000-4660, 22100-58600. Application recorded for this part: VE. The injection pump is what generates injection pressure and meters fuel to each cylinder in firing order. Because it also provides the timing reference, its condition affects starting, smoke, power and fuel consumption together — a pump that is worn rarely produces a single isolated symptom. Look for extended cranking, especially hot, poor throttle response, smoke across the rev range, fluctuating idle speed, and a gradual rise in consumption that cannot be explained by duty cycle. Before condemning the pump, rule out the cheap causes: supply restrictions, a weak lift pump, air ingress on the suction side and a blocked filter. Check supply pressure and condition at the pump inlet first, then look at delivery and timing. Fitment notes: this unit must be timed to the engine, not simply bolted on. Never force the shaft to align — turn the engine over to meet it. Prime the system before cranking, fit a new drive seal where specified, and verify supply pressure from the lift pump before start-up. Running a dry pump, even briefly, causes damage that no warranty will cover. Rebuild process: full teardown and measurement first, then replacement of all wear components, machining back to specification where required, followed by calibration and bench testing. The difference between this and a cleaned used part is the measurement and test record — we hold every unit to the specification for the part number, not just to 'it runs'. Test sheets available on request, and every unit ships with a 12-month warranty.
| Part number | 096000-4660 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 096000-4660, 22100-58600 |
| Application | VE |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
