About this part

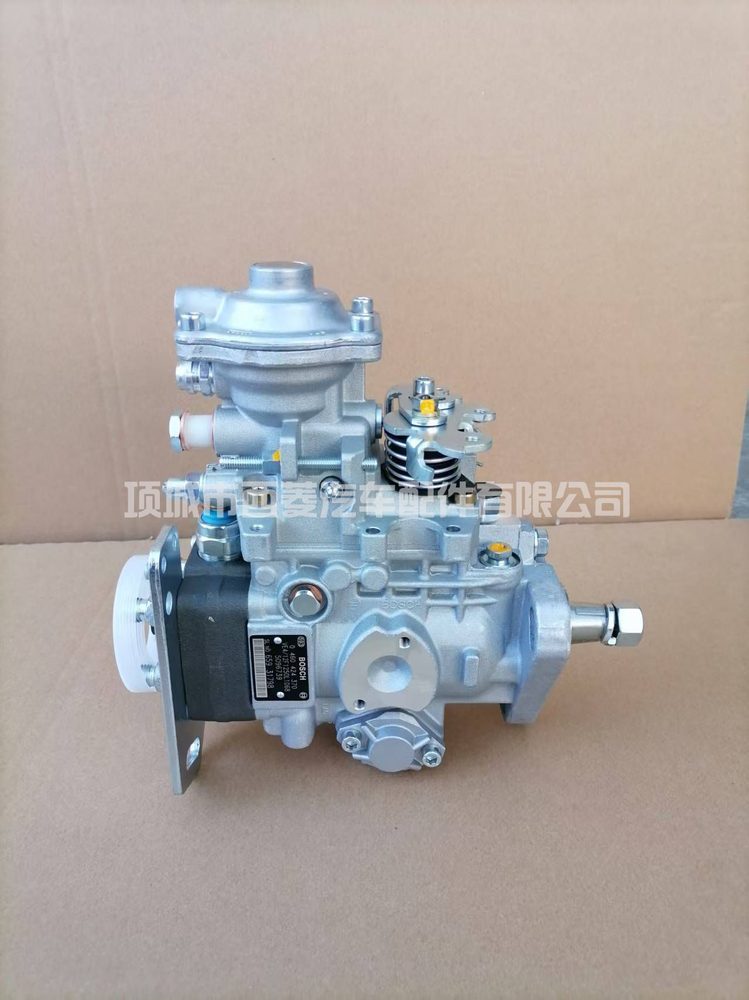

0460424370 is supplied as a remanufactured replacement fuel injection pump. Cross-reference numbers: 0460424370, 5096739, 12F1250L1068. Application recorded for this part: VE VE4.
Supply pressure, timing and delivery quantity are all set here. Failures tend to progress gradually — a little more smoke, slightly harder starting when hot, slowly rising consumption — which is why they are often attributed to the injectors before the pump is checked.
Expect extended cranking especially when hot, hesitant throttle response, smoke that persists rather than clears, timing that drifts or will not hold, and in some cases fuel in the sump or a pump body running unusually hot.
Eliminate the cheap causes first: filter condition, lift pump output, suction-side air leaks, fuel quality. Only then have delivery quantity and timing tested before committing to a replacement unit.
Fitment notes: this unit must be timed to the engine, not simply bolted on. Never force the shaft to align — turn the engine over to meet it. Prime the system before cranking, fit a new drive seal where specified, and verify supply pressure from the lift pump before start-up. Running a dry pump, even briefly, causes damage that no warranty will cover.
Rebuild process: full teardown and measurement first, then replacement of all wear components, machining back to specification where required, followed by calibration and bench testing. The difference between this and a cleaned used part is the measurement and test record — we hold every unit to the specification for the part number, not just to 'it runs'. Test sheets available on request, and every unit ships with a 12-month warranty.
Specifications
| Part number | 0460424370 |
| Condition | Remanufactured (not a genuine OEM new part) |
| Cross-reference | 0460424370, 5096739, 12F1250L1068 |
| Application | VE VE4 |
| Process | Disassembled, cleaned, measured, wear parts replaced, machined to specification |
| Bench test | Delivery, return flow, opening pressure and leakage recorded before dispatch |
| Warranty | 12 months |
Fitment note. Several part numbers in this family look similar. Confirm the number on your
existing unit, the engine model and the machine or vehicle application before ordering. Send us a nameplate photo
and we will verify the match before dispatch.
All manufacturer names, symbols and part numbers are used for identification and cross-reference purposes only. We are not an authorised distributor and are not affiliated with the original equipment manufacturer. Products offered are remanufactured or new aftermarket replacement parts unless stated otherwise.
